Depositors

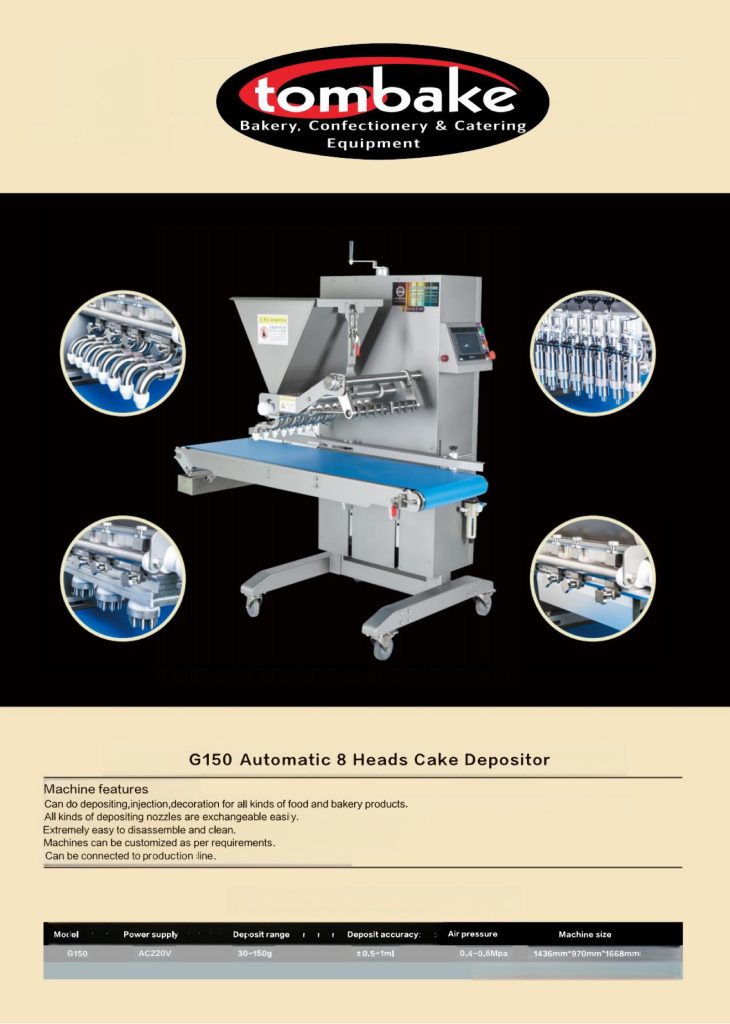

G150 — Multi Nozzle Tray Depositor
The G150 is an automatic 8-head cake batter depositor suited to cakes, muffins, decoration and filling injection. Deposit weight ranges from 30 g to 150 g with ± 0.5 ml accuracy. Nozzles are quick-change for fast product turnaround.
- 8 deposit heads
- Deposit range: 30 g – 150 g
- Accuracy: ± 0.5 ml
- Quick-change nozzles for cake, batter, decoration and injection
Model Guide
Choose your
Choose your
model.
Every build of this machine, with the model number to quote. Options and add-ons are priced separately.
| Model | Build | What it means | Power |
|---|---|---|---|
| HF-G150 | Pneumatic Cake Batter Depositor - Tray Size 400x600mm with up to 8 nozzles - Hopper 35Lt----0.5- 0.7Mpa Air Pressure required ----10-25 cycles per minute - 220V | ||
| HF-GH20 | Pneumatic Hopper Topper -Batter Transfer Pump-15-20Lt per minute ---0.4-0.6Mpa Air Pressure required | ||
| HF-GL1000 | Horizontal Pneumatic Cake Batter Depositor with single nozzle filling range 200ml - 1000ml per drop - 0.3- 0.5Mpa Air Pressure required | ||
| HF-GCG-LCF/3m | Horizontal Cake Tin Transfer conveyor 3m x 300mm (adjustable for 200mm diameter (sponge tins) | ||
| HF-G5 | Table Model Gear Pump Cake Batter depositor with pneumatic hand operated nozzle c/wdouble injection spike 0.3-0.4Mpa required Hopper 23L 220V | ||
| HF-G2 | Table Model Gear Pump Cake Batter depositor with single and double injection needle 220V | ||
| HF-G68 | Rotary Cream Depositor with Scraper |
Model numbers and specifications are taken from the Tombake price list. Contact us to confirm the current build before ordering.
Detail & Specification
Product
Product
specifications.
Easy to disassemble and clean. Can run standalone or integrated into a tray-feed production line.
